Advantages
◎Wide Applications: Suitable for various metal ware production, like cookware, kitchenware, tableware that made
of stainless steel, composite steel, copper, aluminum, iron etc.
◎Save Cost: Laser cutting line can replace traditional blanking line punch machine so that no Mould installation.
◎Easier Operation: Any shape can be cut out. Cutting range from 60-1000mm in diameter. The cutting edging is
smooth and no burr.

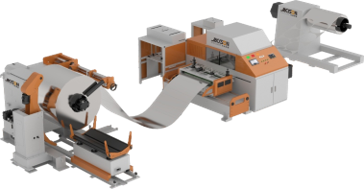

◎Machine Construction: Uncoiling +Deflection Regulation +Laser Cutting +Cut Sheet Collecting +Auto Stacking
+Scrap Reeling.
◎Auto Loading & Uncoiling brings the advantage of labor-saving & High degree of automation.
◎Any Shape can be cut out. Cutting range from 60-1000mm in diameter. The cutting edging is smooth and no
burr.
◎Automatic Collection & Stacking cut sheets are automatically collected and stacked to realize labor-saving.
◎Automatic Scrape Recovery scrap rewinding, easy and simple unloading.
Main Technical Parameters
|
Model
|
JS-LB1.5
|
JS-LB3.0
|
JS-LB6.0
|
|
Laser power
|
1.5kW
|
3kW
|
6kW
|
|
Function
|
Laser blanking, auto loading and
unloading the coil,
automatic stacking
|
|
Technology
|
Laser tech,
auto loading and unloading, automatic stacking
|
|
Working thickness
|
Aluminum
|
0.5-4mm
|
|
Stainless Steel
|
0.3-2mm
|
|
Copper
|
0.3-4mm
|
|
Three-layer steel
|
0.3-2mm
|
|
Decoiler capacity
|
0-8 tons
|
|
Coil width
|
0.5-1.3m(Can be customized)
|
|
Working diameter
|
50-500mm
|
|
Ovality
|
±0.1mm
|
|
Cutting speed
|
Φ300mm:10m/min
|
Φ300mm:15m/min
|
Φ300mm:30m/min
|
|
Voltage
|
380V~ /415V~
|
|
Power
|
Decoiler
|
22kW
|
|
Blanking part
|
11kW
|
12.5kW
|
15.5kW
|
|
Scrap rack
|
7.5kW
|
|
Size
|
Decoiler
|
3477×5067×2479mm
|
|
Blanking part
|
4375×3105×2200mm
|
|
Scrap rack
|
3477×5067×2479mm
|
|
Weight
|
5.5ton
|
