Advantages
◎ Isolation function of plate pressing roller: before and after cleaning, feeding, etching, and film removal, there
are water blocking roller sections to prevent solution channeling and ensure the production environment. The
rubber roller adopts sea rubber mandrel as titanium.
◎ Features of materials used: main transmission gear and driven gear, the heavy-duty area is titanium/PVDF
optimal fit; other areas use self-lubricating high-strength, ultra-high corrosion-resistant PVDF/enhanced PPH
gears, and the frame and tank are made in China. Board/Grade A δ12/10/etc/pp engineered board.
◎Modular design: The equipment is of modular design, which is convenient for assembly and disassembly, so
as to increase or decrease functions in future process changes. The feet can allow the horizontal height of the
equipment to be adjusted by ±25mm, which is convenient for customers to use with other units.
◎ External inclined liquid cylinder: The liquid cylinder is exposed outside the machine body, which is convenient
for cleaning. The pipeline is a foldable design, which can be replaced and cleaned regularly. The bottom of the
liquid cylinder adopts a slightly inclined 5-degree design and bottom drainage.
◎The slope design under the rollers of the tank body facilitates the liquid medicine to flow back into the storage
tank.
◎Equipped with a low liquid level shutdown protection function to avoid damage to the liquid pump due to no
load.
◎ The nozzles in the cleaning area can be disassembled independently for easy cleaning.
◎ Pump spray liquid supply system, etching area: 3.75kw titanium pump * 14 sets; cleaning titanium pump after
etching: 0.75KW titanium pump * 3 sets; film removal area: 3.7KW stainless steel pump * 4 sets; flushing area:
3.7KW.
Titanium pump*1 set. Cleaning area stainless steel pump: 0.75KW*2 sets. Etching solution circulation pump:
15.5KW/380V titanium pump.

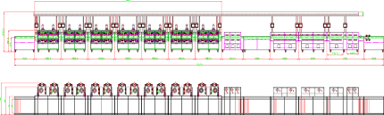

Main Technical Parameters
|
Model
|
JSE-750
|
|
Function
|
Remove unnecessary lines through chemical reaction, making
the patterns obvious
|
|
Technology
|
Independent original control system
|
|
Entry width
|
900mm
|
|
Working piece
|
0-750mm
|
|
Working speed
|
0.3~3 m/min
|
|
Voltage
|
380V/50Hz
|
|
Power
|
146kW(Including etching
and film removal
electric heating power)
|
|
Size
|
32000mm*1900mm
|
