Advantages
◎ Microcomputer control, strong anti-interference ability and high reliability.
◎ The heating is more uniform, the temperature difference between the center and the edge is small, and the
bottom welding quality is guaranteed.
◎ Large-diameter cylinder, using 160mm cylinder, with fast heat transfer and low loss.
◎ Multi-sensor heads, automatic cycle work, thereby reducing the labor intensity.
◎ The operation mode is digitally displayed, which is convenient for maintenance.
Processing

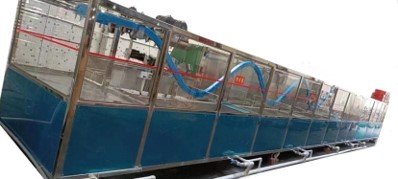

(12 meters round hanging automatic ultrasonic cleaning and drying integrated equipment)
Loading → No.1 wax removal tank → No. 2 rinsing tank → No.3 rinsing tank
↑ ↓spray
Unloading ← Oven ← Cut water ←
No. 4 rinsing tank
1. No. 1 wax removal tank has a total of 192 vibrating heads, 4 host controls, 4 electric heating tubes.
2. No. 2 rinsing tank has a total of 96 vibrating heads, controlled by 2 hosts, and 1 electric heating tube.
3. No. 3 rinsing tank has a total of 48 vibrating heads, controlled by a host, no electric heating, cold water rinsing.
4. No. 4 rinsing tank has a total of 48 vibrating heads, controlled by 1 hosts, and 3 electric heating tube.
5. The inner tank has a width of 450mm and a depth of 550mm. The front of the machine is equipped with
plexiglass.
6. The whole machine is controlled by independent power distribution box.
7. The main driving square tube of the machine is 50*50, the material is 201*2.0mm stainless steel, the inner
tank is made of SUS304*2.0mm, and the outer tank is 201*0.8mm.
Main Technical Parameters
|
Model
|
JSB-WD120
|
|
Function
|
Remove oil,
fluid & dust
|
|
Technology
|
Ultrasonic
|
|
Output
|
25000pcs/8h
|
|
Voltage
|
380V~ /415V~
|
|
Power
|
70 kW
|
|
Size
|
11500*1700*1700mm
|
|
Weight
|
2500kg
|
