Advantages:
1.Bulged pipe washing clean surface to prepare for welding and polishing procedure
2.Auto transportation by manipulator & mechanical system.
3.Energy saving in drying section heat keeping system.
4.Easy maintenance from transparent monitor window.

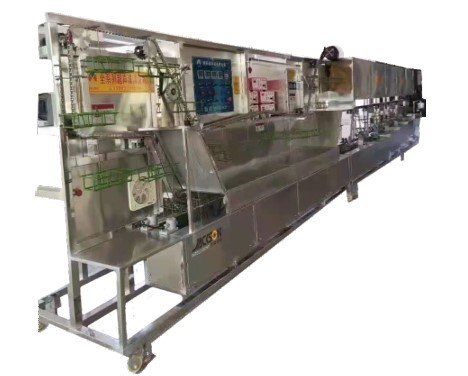

Processing (Automatic cleaning equipment for stainless steel fittings with 6 slots single chain circulation)
Picking table →No. 1 with heated wax removal tank → No. 2 with heated oil removal tank → No.3 rinsing tank
→ No.4 pure water tank → No.5 pure water tank → Pure water tank heating
1. The whole machine is made of stainless steel, the ultrasonic inner groove 304 plate is 2.0 thick, the machine is
out of 201 material, the total weight of the machine is about 11*1*2m.
2. 5 ultrasonic hosts, 240 transducers
3. Ultrasonic sink inner strength width 8600*280mm* 400mm(deep)
4. The total power is 30kw+, and the oven is 15kw.
5. This device is a patented device imitator.
Main Technical Parameters
